for bends with very short radius / narrow according to type / standard 2

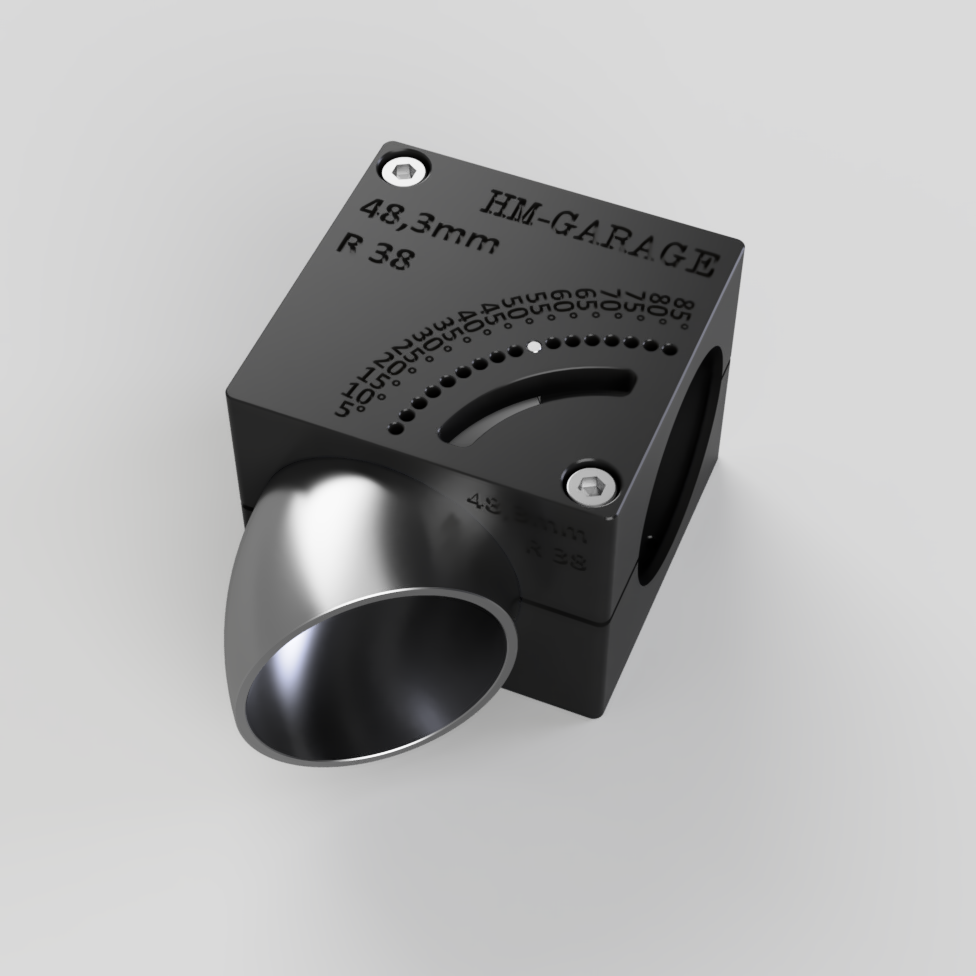

The 3D-printed fixture enables the precise cutting of a pipe bend to the correct radius, for example, using a band saw. The stop can be set every 5 degrees using a 2mm welding rod. The pipe bend can be secured by tightening the built-in screws, making the fixture also suitable as a marking aid. When clamping in a vise, the screws can be omitted, as the guides are provided. These are welding elbows according to DIN 2605 or EN10253-4 or DIN 11852.
Particularly useful for the construction of exhaust systems, piping, manifolds or charge air piping.
If you need the device in a different size, just let me know.
In another ad you will find the standard sizes according to type 3.
The screws, nuts and the pin for securing are included in delivery.
